Online DB Configurator
Floor standing IP66 distribution board, configured in minutes
1900mm H × 1200mm W × 500mm D · cold rolled mild steel · flat weatherproof roof · 100mm forklift plinth. Drag panels and carriers into the four bays, then send the layout straight to our factory floor.
Your build
Left top, left bottom, right top, right bottom.
Left · Top
Carriers are fixed by this panel — remove the panel to change them.
Left · Bottom
Carriers are fixed by this panel — remove the panel to change them.
Right · Top
Carriers are fixed by this panel — remove the panel to change them.
Right · Bottom
Carriers are fixed by this panel — remove the panel to change them.
Send it to the factory
We receive your exact layout, confirm pricing and lead time, and put it into production. Standard boards ship quickly from stock components.
Configuration summary

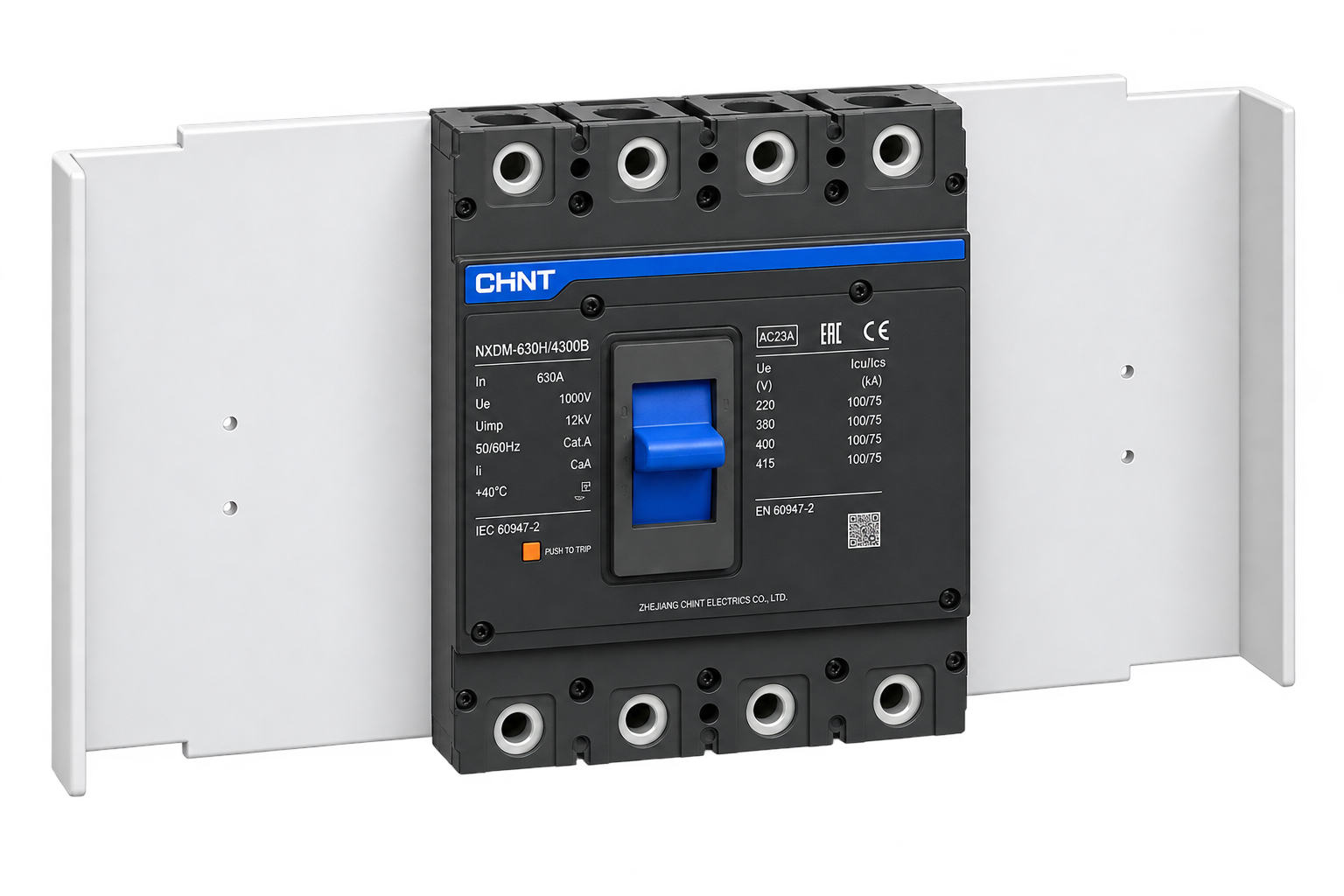

- Left · Top: Single large cutout (1 × Large carrier)

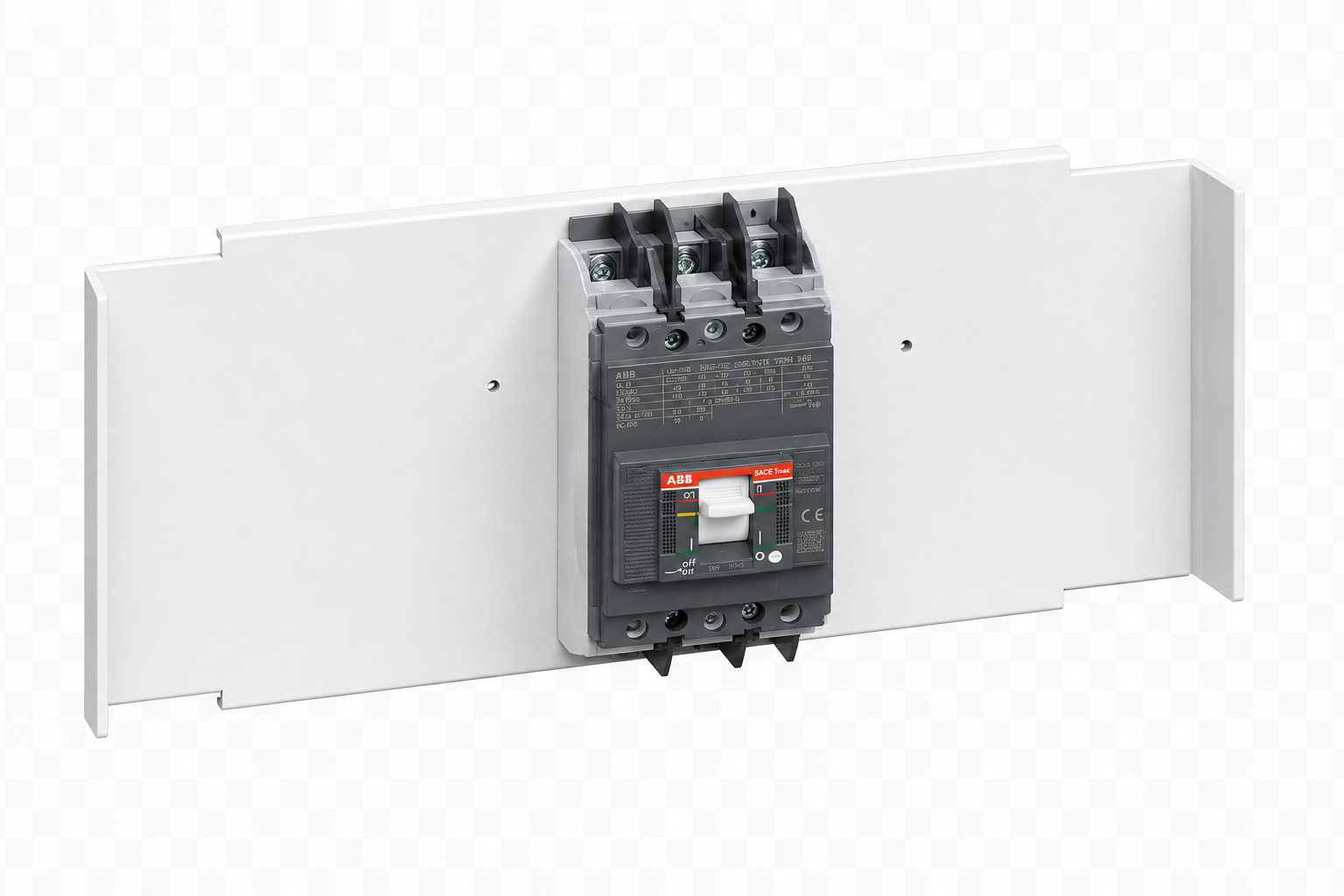

- Left · Bottom: 4 square cutouts (2 × Small carrier)

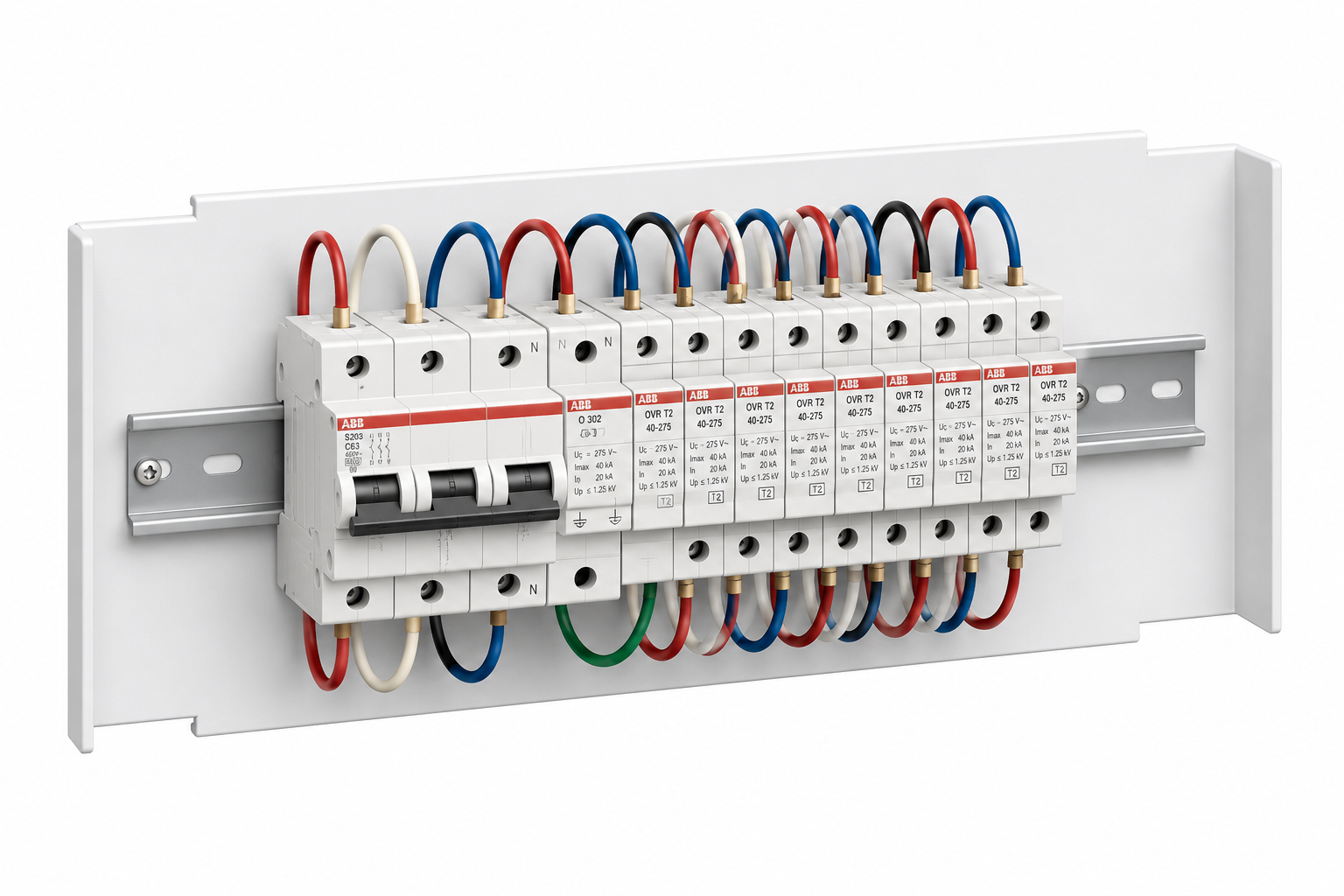

- Right · Top: 4 rows DIN cutouts (4 × DIN rail)
- Right · Bottom: 4 rows DIN cutouts (4 × DIN rail)
Every board is built from stock panels and carriers — that's how we keep lead times short.
Your details
Emailing downloads a PDF of all four layout views to attach · +27 76 512 3912 · sales@dbsa.co.za
Board specification
Enclosure
- 1900mm H × 1200mm W × 500mm D
- Cold rolled mild steel, structured powder coat
- Optional 3CR12, 304 or 316 stainless
- Red, White, Orange, Black, Grey, Yellow, Green
Protection
- IP66 weatherproof peaked canopy
- IP65 compliance certification supplied
- Lockable front doors, door earthing bolts
- 100mm stress plinth with forklift entry
Capacity
- Up to 1600A main circuit breaker
- DIN rail or carrier mount feeders
- Lift-off inner panels, square key catches
- Busbar mounts pre-designed (copper optional)
Board supplied empty (excludes breakers, wiring and copper). Full supply-and-install customisation available at additional cost. R23 999 ex VAT.
